Combined Gas Analyser and Diesel Smoke Meter (Modules Only)

DVSA Connected MOT Equipment Approved

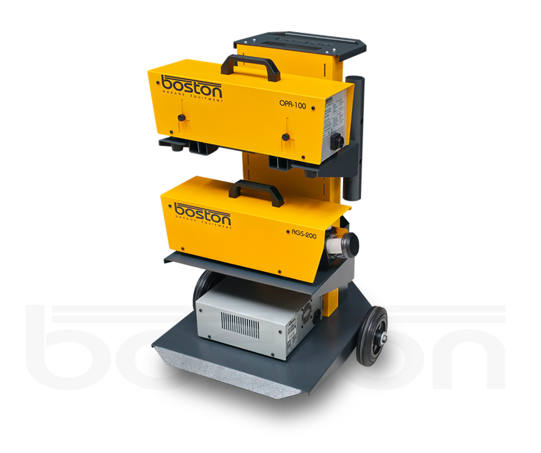

The Boston EM12T is our combined wireless Gas Analyser and Diesel Smoke Meter emissions package, but supplied without a control station.  It is intended as a bolt-on item for customers who already have an existing Boston control station, or high quality PC in their workshop. Simply connect the emissions trolley to your existing system (via USB or Bluetooth), install the SW900 iV control software and that's it.*

Using Bluetooth wireless connectivity, the compact gas and smoke modules can locate neatly at the end of the test lane and communicate with your existing system; and with the addition of RFC-96, our Bluetooth 5 (LE) remote control, both models can be controlled remotely from inside the vehicle.

Approved in nearly all European countries to the highest and latest specifications, the OPA100 and AGS200 are small and lightweight, and are one of the most advanced and best selling emissions testing packages in the market today.

Both the OPA and AGS can complete a FAST PASS diesel test and a Basic Emissions Test (BET) in under 3.5 minutes respectively, including printed results (if required).

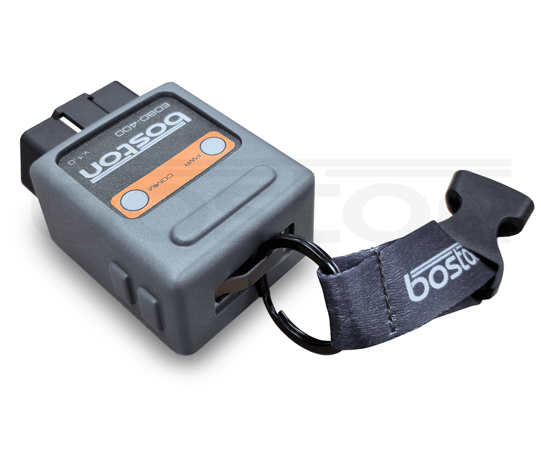

The package also contains our new EOBD-400, a Bluetooth 5 (LE) EOBD diagnostic interface for communication of the Oil Temperature and RPM directly back to the control software. Furthermore, EOBD-400 is also able to carry out diagnostic interrogation using many off-the-shelf third party applications (Android and iOS), providing useful additional benefits.

Our SW900 iV control software is developed and written by Boston here in the UK, specifically for the operation of our computer driven products. It contains many novel features not found in other control software, just a few of which are shown below:

• Seamless integration with the DVSA MTS work-order system.
• Connects to all Boston products; gas and diesel emissions testers, roller brake testers, decelerometers, headlight testers, cameras, our EOBD-400 diagnostic interface and more.., everything is controlled from one software.
• Flexible printout options.
• Option to send a 'Help Request' message direct to our service department, no phone call or emails needed.
• Built-in remote assistance allows our support team to connect in seconds if necessary.
• Send test results direct to customers via email.
• Automatic updates over the internet.

Boston emissions packages and all other MOT products are high quality, simple to use, and maintained by the best support team in the industry. We have a dedicated vehicle test lane fully installed at our head office for training and development. Customers and distributors are welcome to visit anytime, please contact us to arrange.

* subject to correct specification PC (see BPC-091) - please contact our Service Department for further info.
